Vertere

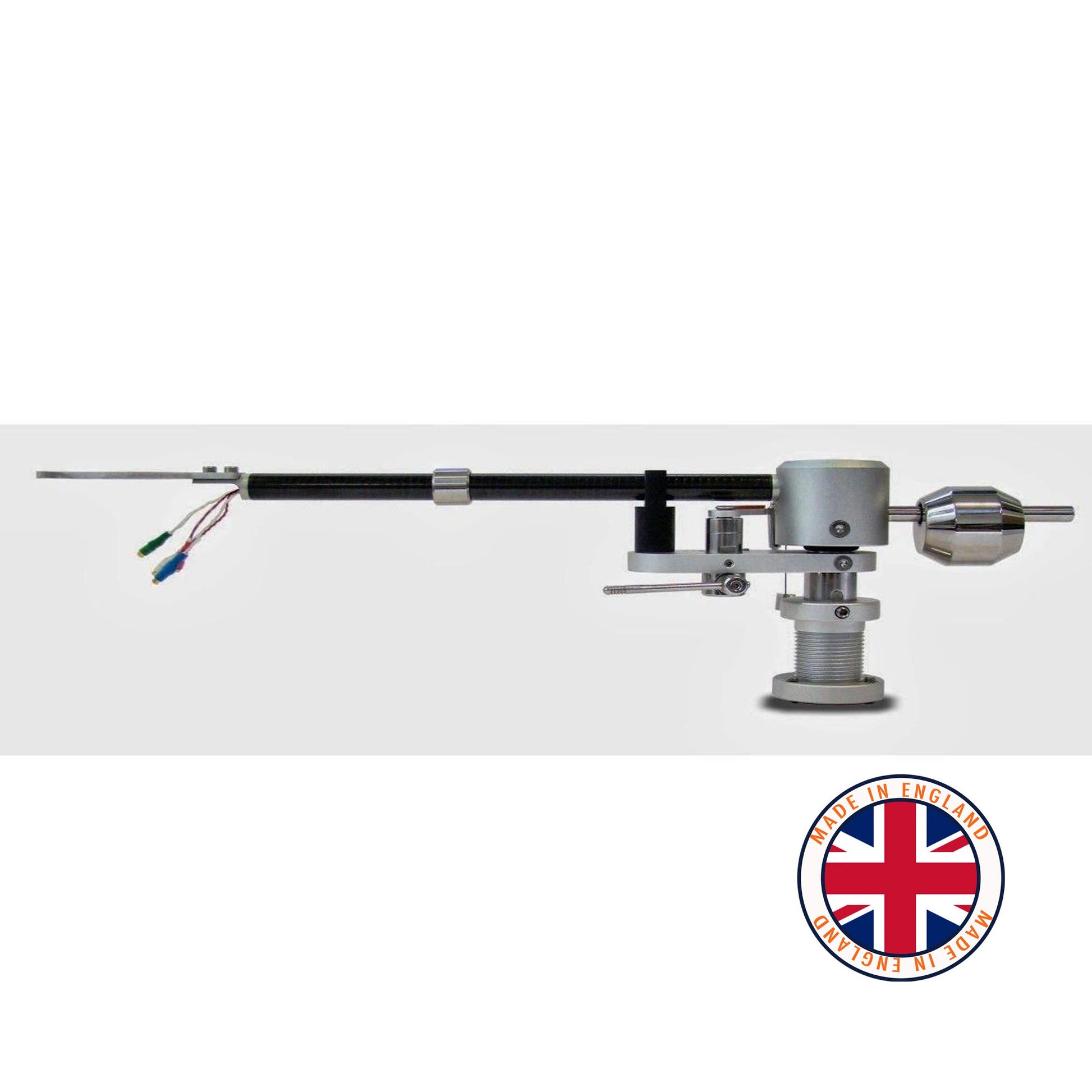

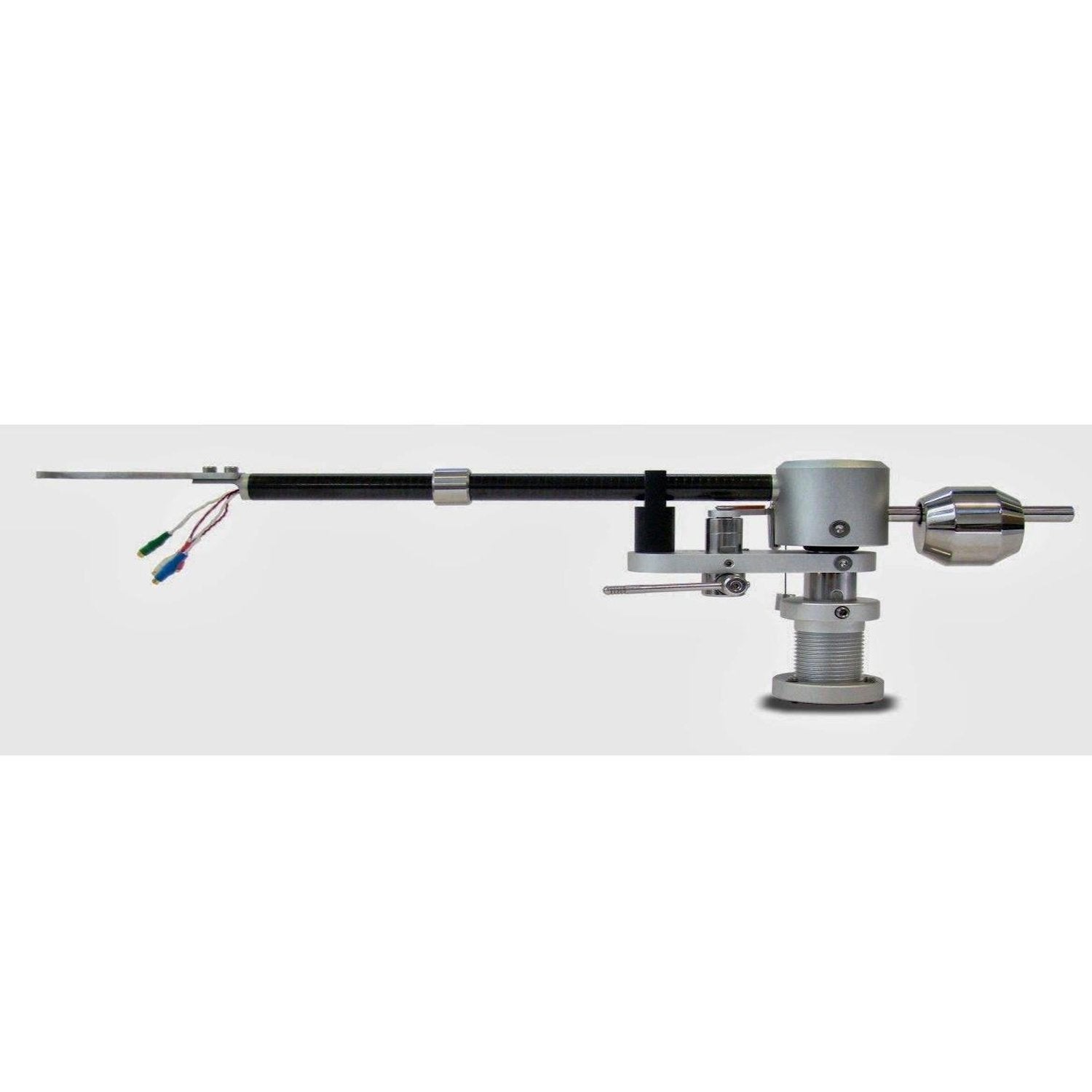

SG-1 Super Groove Tonearm

The unique Tri Point Articulated (TPA) bearing is comprised of three precision silicone nitride balls and stainless pivot. The pivot point centred between the balls provides flawless support and articulation. TPA eliminates bearing point ‘skating’ and allows the stylus to track the most delicate pieces of information that are typically lost with uni-pivot designs. This ensures accurate play back due to the strict adherence of the stylus to the record groove. The bearing pivot is structurally bonded to the aluminium alloy yoke. The yoke assembly provides the support required for the arm tube, the main counterweight and the anti-skate mechanism. The pivot point and the counterweight centre of gravity are vertically positioned to be as low as possible. This in turn retains the tonearm in its most stable position. Roll wrapped carbon fibre is used in the construction of the arm tube. This provides higher strength and more homogenous fibre structure than a Pultruded or moulded equivalent. The head-shell is machined from aluminium alloy and connected to the arm tube via structurally bonded alloy end insert. Naturally non-resonant and higher strength to weight ratio of this configuration provides the optimum cartridge platform. An adjustable and de-coupled stainless ring allowed to move along the arm tube provides fine tracking weight adjustment. The relative position of this ring and of the main counterweight can also be used to alter the arm/cartridge resonance frequency and optimise play back performance. Attention to detail is clearly seen in the polished stainless steel counterweight and peg. Two pairs of silicone de-coupling rings are neatly sandwiched between three machined Acetal retainers to provide the necessary grip for location and the required isolation of the counterweight. Bespoke components are used for every part of the SG-1 Tonearm including its machined Acetal arm clip and polished stainless cueing device. Both the cartridge tags and the 5-pin connector pins are designed, machined and gold plated to our exact specifications for the SG-1 tonearm. The 5-pin connector main body is also machined form solid PTFE for its superior di-electric characteristics. There are two options available for the internal wiring of the SG-1 tonearm: Standard Pulse wiring Hand-built Pulse wiring
